ISTL / IKTL
INSULATED GROUNDING CONNECTORS WITH SOLDER SOLIDIFIED CONTACT AREAS
GROUNDING CONNECTORS - application
Applicable as grounding connectors and component for current transfer.
GROUNDING CONECTORS - construction
These grounding connectors are manufactured from highly flexible tapes that are braided from annealed Cu-ETP wires, and contact areas, which are pressed to shape after solidified by immersing into alloyed lead-free solder
material
Material: 0,20 mm annealed Cu-ETP wires , uncoated or tinned.
Insulation – special vinyl compound
Contact Areas: ametal alloyed leadfree solidified and pressed.
Max. working temperature: 105°C self-extinguishable: UL 94 VO dielectric strength: 20 kV/mm
Max. working voltage: 1000 V AC – 1500 V DC
Contact Areas: ametal alloyed leadfree solidified and pressed.
Max. working temperature: 105°C self-extinguishable: UL 94 VO dielectric strength: 20 kV/mm
Max. working voltage: 1000 V AC – 1500 V DC
delivery method
delivery method: ready-to-use tapes
Product card
We provide cataloged products that you can view and select from our brochures.
Contact
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów
technical parameters

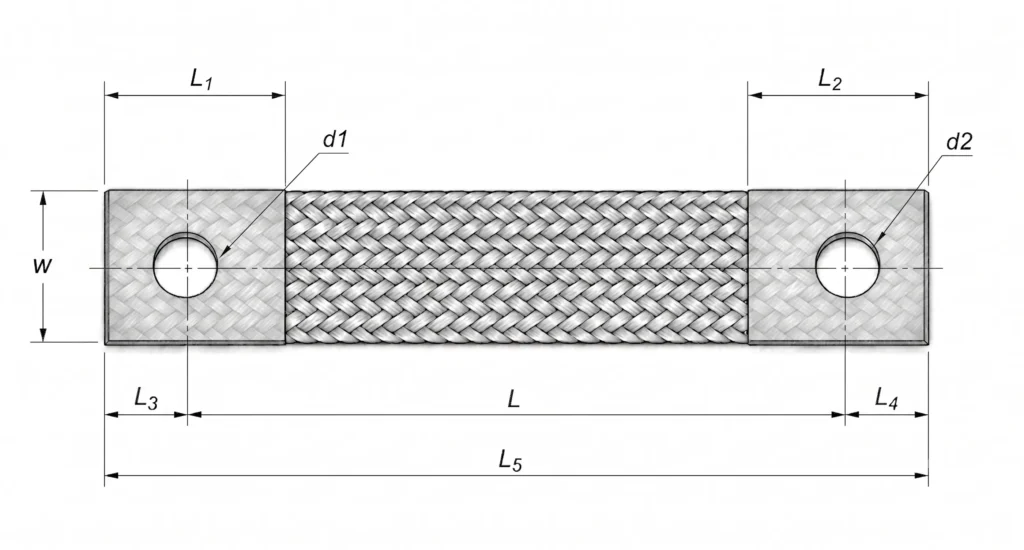

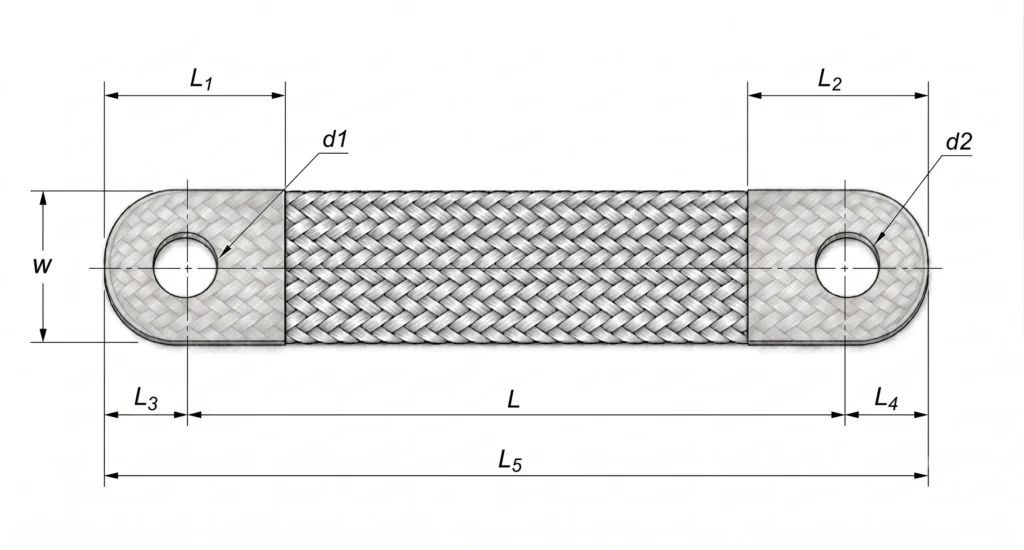

UNCOATED Part-No | TINNED Part-No | Cross sec. mm2 | L mm | L1mm | L2 mm | L3 mm | L4 mm | L5 mm | w mm | t mm | K mm | G mm | d1 mm | d2 mm | Packing min. pcs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISTL 025-230-10-8 | IKTL 025-230-10-8 | 25 | 230 | 25 | 25 | 11 | 7 | 248 | 20 | 2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 0245-330-10-8 | IKTL 025-330-10-8 | 25 | 330 | 25 | 25 | 11 | 7 | 348 | 20 | 2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 025-430-10-8 | IKTL 025-430-10-8 | 25 | 430 | 25 | 25 | 11 | 7 | 448 | 20 | 2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 025-530-10-8 | IKTL 025-530-10-8 | 25 | 530 | 25 | 25 | 11 | 7 | 548 | 20 | 2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 025-630-10-8 | IKTL 025-630-10-8 | 25 | 630 | 25 | 25 | 11 | 7 | 648 | 20 | 2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 035-230-10-8 | IKTL 035-230-10-8 | 35 | 230 | 25 | 25 | 11 | 7 | 348 | 20 | 3,2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 035-330-10-8 | IKTL 035-330-10-8 | 35 | 330 | 25 | 25 | 11 | 7 | 348 | 20 | 3,2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 035-430-10-8 | IKTL 035-430-10-8 | 35 | 430 | 25 | 25 | 11 | 7 | 448 | 20 | 3,2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 035-530-10-8 | IKTL 035-530-10-8 | 35 | 530 | 25 | 25 | 11 | 7 | 548 | 20 | 3,2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 035-630-10-8 | IKTL 035-630-10-8 | 35 | 630 | 25 | 25 | 11 | 7 | 648 | 20 | 3,2 | 7 | 24 | 10,5 | 8,5 | 10 |
ISTL 050-230-10-8 | IKTL 050-230-10-8 | 50 | 230 | 25 | 25 | 11 | 7 | 248 | 20 | 4,5 | 8 | 24 | 10,5 | 8,5 | 10 |
ISTL 050-330-10-8 | IKTL 050-330-10-8 | 35 | 330 | 25 | 25 | 11 | 7 | 348 | 20 | 4,5 | 8 | 24 | 10,5 | 8,5 | 10 |
ISTL 050-430-10-8 | IKTL 050-430-10-8 | 50 | 430 | 25 | 25 | 11 | 7 | 448 | 20 | 4,5 | 8 | 24 | 10,5 | 8,5 | 10 |
ISTL 050-530-10-8 | IKTL 050-530-10-8 | 50 | 530 | 25 | 25 | 11 | 7 | 548 | 20 | 4,5 | 8 | 24 | 10,5 | 8,5 | 10 |
ISTL 050-630-10-8 | IKTL 050-630-10-8 | 50 | 630 | 25 | 25 | 11 | 7 | 648 | 20 | 4,5 | 8 | 24 | 10,5 | 8,5 | 10 |
ISTL 070-230-10-10 | IKTL 070-230-10-10 | 70 | 230 | 25 | 25 | 11 | 11 | 252 | 20 | 5,5 | 9 | 24 | 10,5 | 10,5 | 10 |
ISTL 070-330-10-10 | IKTL 070-330-10-10 | 70 | 330 | 25 | 25 | 11 | 11 | 352 | 20 | 5,5 | 9 | 24 | 10,5 | 10,5 | 10 |
ISTL 070-430-10-10 | IKTL 070-430-10-10 | 70 | 430 | 25 | 25 | 11 | 11 | 452 | 20 | 5,5 | 9 | 24 | 10,5 | 10,5 | 10 |
ISTL 070-530-10-10 | IKTL 070-530-10-10 | 70 | 530 | 25 | 25 | 11 | 11 | 552 | 20 | 5,5 | 9 | 24 | 10,5 | 10,5 | 10 |
ISTL 070-630-10-10 | IKTL 070-630-10-10 | 70 | 630 | 25 | 25 | 11 | 11 | 652 | 20 | 5,5 | 9 | 24 | 10,5 | 10,5 | 10 |
ISTL 095-230-10-10 | IKTL 095-230-10-10 | 95 | 230 | 25 | 25 | 11 | 11 | 252 | 25 | 7 | 11 | 29 | 10,5 | 10,5 | 10 |
ISTL 095-330-10-10 | IKTL 095-330-10-10 | 95 | 330 | 25 | 25 | 11 | 11 | 352 | 25 | 7 | 11 | 29 | 10,5 | 10,5 | 10 |
ISTL 095-430-10-10 | IKTL 095-430-10-10 | 95 | 430 | 25 | 25 | 11 | 11 | 452 | 25 | 7 | 11 | 29 | 10,5 | 10,5 | 10 |
ISTL 095-530-10-10 | IKTL 095-530-10-10 | 95 | 530 | 25 | 25 | 11 | 11 | 552 | 552 | 7 | 11 | 29 | 10,5 | 10,5 | 10 |
ISTL 095-630-10-10 | IKTL 095-630-10-10 | 95 | 630 | 25 | 25 | 11 | 11 | 652 | 25 | 7 | 11 | 29 | 10,5 | 10,5 | 10 |
ISTL 120-330-10-10 | IKTL 120-330-10-10 | 120 | 330 | 30 | 30 | 11 | 14 | 355 | 30 | 7 | 11 | 34 | 10,5 | 10,5 | 2 |
ISTL 120-430-10-10 | IKTL 120-430-10-10 | 120 | 430 | 30 | 30 | 11 | 14 | 455 | 30 | 7 | 11 | 34 | 10,5 | 10,5 | 2 |
ISTL 120-530-10-10 | IKTL 120-530-10-10 | 120 | 530 | 30 | 30 | 11 | 14 | 555 | 30 | 7 | 11 | 34 | 10,5 | 10,5 | 2 |
ISTL 120-630-10-10 | IKTL 120-630-10-10 | 120 | 630 | 30 | 30 | 11 | 14 | 655 | 30 | 7 | 11 | 34 | 10,5 | 10,5 | 2 |
ISTL 120-730-10-10 | IKTL 120-730-10-10 | 120 | 730 | 30 | 30 | 11 | 14 | 755 | 30 | 7 | 11 | 34 | 10,5 | 10,5 | 2 |
ISTL 120-830-10-10 | ISTL 120-830-10-10 | 120 | 830 | 30 | 30 | 11 | 14 | 855 | 30 | 7 | 11 | 34 | 10,5 | 10,5 | 2 |
ISTL 150-330-12–12 | IKTL 150-330-12-12 | 150 | 330 | 30 | 30 | 14 | 14 | 355 | 30 | 9 | 13 | 34 | 12,5 | 12,5 | 2 |
ISTL 150-430-12-12 | IKTL 150-430-12-12 | 150 | 430 | 30 | 30 | 14 | 14 | 455 | 30 | 9 | 13 | 34 | 12,5 | 12,5 | 2 |
ISTL 150-530-12-12 | IKTL 150-530-12-12 | 150 | 530 | 30 | 30 | 14 | 14 | 555 | 30 | 9 | 13 | 34 | 12,5 | 12,5 | 2 |
ISTL 150-630-12-12 | IKTL 150-630-12-12 | 150 | 630 | 30 | 30 | 14 | 14 | 655 | 30 | 9 | 13 | 34 | 12,5 | 12,5 | 2 |
ISTL 150-730-12-12 | IKTL 150-730-12-12 | 150 | 730 | 30 | 30 | 14 | 14 | 755 | 30 | 9 | 13 | 34 | 12,5 | 12,5 | 2 |
ISTL 150-830-12-12 | IKTL 150-830-12-12 | 150 | 830 | 30 | 30 | 14 | 14 | 855 | 30 | 9 | 13 | 34 | 12,5 | 12,5 | 2 |
ISTL 185-330-12-12 | IKTL 185-330-12-12 | 185 | 330 | 30 | 30 | 14 | 14 | 355 | 30 | 10 | 14 | 34 | 12,5 | 12,5 | 2 |
ISTL 185-430-12-12 | IKTL 185-430-12-12 | 185 | 430 | 30 | 30 | 14 | 14 | 455 | 30 | 10 | 14 | 34 | 12,5 | 12,5 | 2 |
ISTL 185-530-12-12 | IKTL 185-530-12-12 | 185 | 530 | 30 | 30 | 14 | 14 | 555 | 30 | 10 | 14 | 34 | 12,5 | 12,5 | 2 |
ISTL 185-630-12-12 | IKTL 185-630-12-12 | 185 | 630 | 30 | 30 | 14 | 14 | 655 | 30 | 10 | 14 | 34 | 12,5 | 12,5 | 2 |
ISTL 185-730-12-12 | IKTL 185-730-12-12 | 185 | 730 | 30 | 30 | 14 | 14 | 755 | 30 | 10 | 14 | 34 | 12,5 | 12,5 | 12,5 |
ISTL 185-830-12-12 | IKTL 185-830-12-12 | 185 | 830 | 30 | 30 | 14 | 14 | 855 | 30 | 10 | 14 | 34 | 12,5 | 12,5 | 2 |
ISTL 240-330–12-12 | ITKL 240-330-12-12 | 240 | 330 | 30 | 30 | 14 | 14 | 355 | 30 | 13 | 17 | 34 | 12,5 | 12,5 | 2 |
ISTL 240-430-12-12 | IKTL 240-430-12-12 | 240 | 430 | 30 | 30 | 14 | 14 | 455 | 30 | 13 | 17 | 34 | 12,5 | 12,5 | 2 |
ISTL 240-530-12-12 | IKTL 240-530-12-12 | 240 | 530 | 30 | 30 | 14 | 14 | 555 | 30 | 13 | 17 | 34 | 12,5 | 12,5 | 2 |
ISTL 240-630-12-12 | IKTL 240-630-12-12 | 240 | 630 | 30 | 30 | 14 | 14 | 655 | 30 | 13 | 17 | 34 | 12,5 | 12,5 | 2 |
ISTL 240-730-12-12 | IKTL 240-730-12-12 | 240 | 730 | 30 | 30 | 14 | 14 | 755 | 30 | 13 | 17 | 34 | 12,5 | 12,5 | 2 |
ISTL 240-830-12-12 | IKTL 240-830-12-12 | 240 | 830 | 30 | 30 | 14 | 14 | 855 | 30 | 13 | 17 | 34 | 12,5 | 12,5 | 2 |
