SSTY / SKTY
SILICONE INSULATED ROUND STRANDED SHUNTS WITH PRESSED CONTACT AREAS
application
The best alternative to cable; no cutting, no crimping, flexible, pre-punched, ready to use, quick and easy to install.
construction
These connectors are manufactured from flexible tapes, which are stranded from annealed Cu-ETP1 wires, and solderless contact areas pressed from seamless Cu-ETP tubes. the braided tapes and tubes are of the same analysis and conductivity.
material
Material: 0,20 mm annealed Cu-ETP wires, uncoated or tinned,
Silicone (UL 758 tested)
Contact Areas:Solderless pressed seamless Cu-ETP tube.
Operating Voltage: 1000V AC – 1500V DC
Heat Aging: 250°C 10 days
Minimum Temperature – Cold Bent: -50°C
Dielectric Strength: >21kv/mm
Reaction to Fire: CSE Class 1
Smoke Class Determination: F1
Silicone (UL 758 tested)
Contact Areas:Solderless pressed seamless Cu-ETP tube.
Operating Voltage: 1000V AC – 1500V DC
Heat Aging: 250°C 10 days
Minimum Temperature – Cold Bent: -50°C
Dielectric Strength: >21kv/mm
Reaction to Fire: CSE Class 1
Smoke Class Determination: F1
delivery method
Delivery method: ready-to-use connectors.
Product Card
We provide cataloged products that you can view and select from our brochures.
Contact
ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów
technical parameters

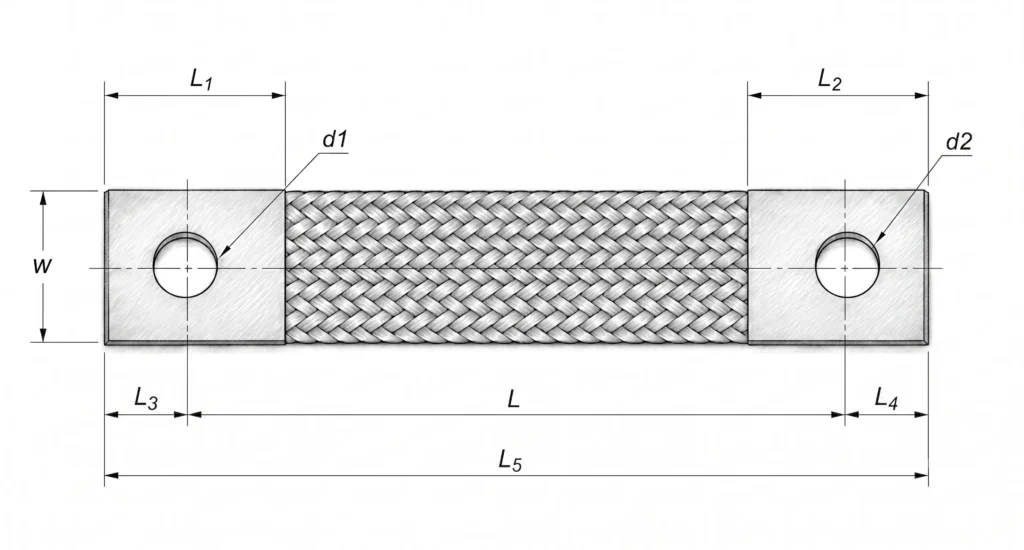

UNCOATED Part-No | TINNED Part-No | Cross sec. mm2 | W mm | L1 mm | t mm | L mm | d1 mm | d2 mm | AC lamps |
|---|---|---|---|---|---|---|---|---|---|
SSTY-02503 | SKTY-02503 | 25 | 20 | 20 | 3 | acc. to customer’s wishes | acc. to customer’s wishes | acc. to customer’s wishes | 160 |
SSTY-03503 | SKTY-03503 | 35 | 25 | 25 | 3 | 200 | |||
SSTY-05004 | SKTY-05004 | 50 | 30 | 30 | 4 | 250 | |||
SSTY-07005 | SKTY-07005 | 70 | 30 | 30 | 5 | 300 | |||
SSTY-09506 | SKTY-09506 | 95 | 35 | 35 | 6 | 350 | |||
SSTY-12007 | SKTY-12007 | 120 | 35 | 35 | 7 | 400 | |||
SSTY-15008 | SKTY-15008 | 150 | 35 | 35 | 8 | 450 | |||
SSTY-18509 | SKTY-18508 | 185 | 40 | 40 | 8 | 500 | |||
SSTY-24009 | SKTY-24010 | 240 | 40 | 40 | 10 | 630 |
