HSKK
Round stranded current connectors for welding machines
Application
They provide multi-dimensional movement flexibility as well as high current transfer at welding machines. We deliver them also with punched rubber insulation tube if needed.
constructon
These connectors are produced from highly flexible round stranded copper cables equipped with solderless pressed seamless Cu-ETP tubes as contact areas at the ends.
material
Material: 0,10 mm annealed Cu ETP wires , uncoated or tinned,
punched rubber insulation tube
Contact Areas:seamless Cu ETP tubes , uncoated or tinned, solderless pressed
punched rubber insulation tube
Contact Areas:seamless Cu ETP tubes , uncoated or tinned, solderless pressed
delivery method
Delivery method: ready-to-use connectors.
Product card
We provide cataloged products that you can view and select from our brochures.
Card
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów

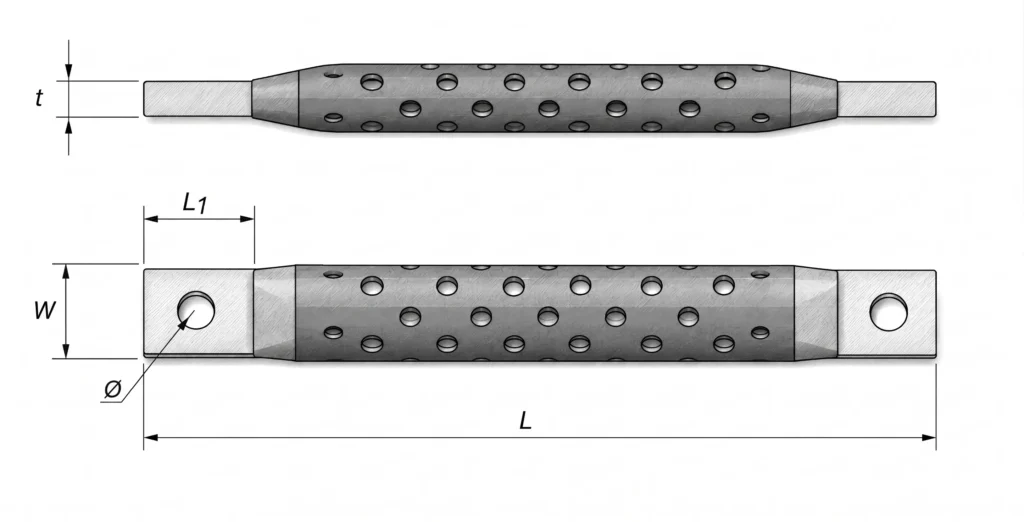

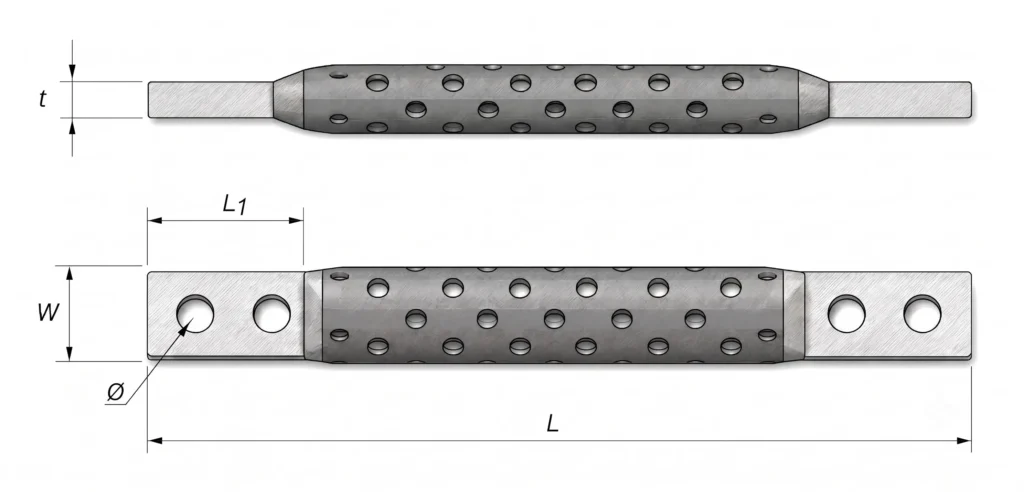

technical parameters
UNCOATED Part-No | TINNED Part-No | W mm | L1 mm | L mm | t mm |
|---|---|---|---|---|---|
HSKK – 0200 | 200 | 32 | 40 | acc. to customer’s wishes | 12 |
HSKK – 0250 | 250 | 32 | 40 | 13 | |
HSKK – 0300 | 300 | 32 | 40 | 15 | |
HSKK – 0400 | 400 | 32 | 40 | 20,5 | |
HSKK – 0500 | 500 | 32 | 40 | 23 | |
HSKK – 0600 | 600 | 38 | 40 | 25 | |
HSKK – 0750 | 750 | 38 | 40 | 32 | |
HSKK – 0850 | 850 | 38 | 40 | 37 |
