SF / KF

FLEXIBLE COPPER CONNECTORS

FLEXIBLE COPPER CONNECTORS - application

Flexible copper connectors are used in many devices and applications requiring flexible high-current connections.

FLEXIBLE COPPER CONNECTORS - construction

Flexible copper connectors are manufactured from highly flexible tapes , which are braided from annealed Cu-ETP wires, and solderless contact areas pressed from seamless Cu-ETP tubes.
Except bare wires and uncoated contact areas, we also manufacture these parts from tinned wires and tin coated contact areas.
You can also ask for L or U shapes except than straight shape. It is possible to manufacture contact areas and the laps according to customers’ special designs.
You are totally free to choose the drilling type and hole diameter as you wish.
If insulation is needed, there are choices as PVC, silicone or heat shrinking tubes as well as extruded PVC.

material

Material 0,10 – 0,20 mm annealed Cu ETP wires , uncoated or tinned Non-insulated or insulated ( PVC , shrinking or silicone tubes ) Contact Areas seamless Cu ETP tubes , uncoated – tinned or silver coated solderless pressed

delivery method

Delivery method : ready-to-use connectors

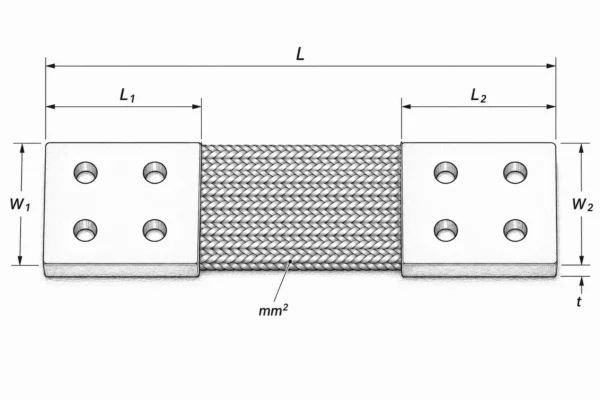

Flexible copper connector

Product card

We provide cataloged products that you can view and select from our brochures.

pobierz kartę

Contact

+48 798 068 000

kontakt@plecionki-miedziane.pl

ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów

inquire about a product

DESIGNATION

I– only for insulated connectors
 SF– all bare copper connector
 KF– all tinned connector
 SFK– bare copper braid, terminals tinned

 Example od product designation
 KF–12015–450
 KF– all tinned connector
    120 – terminals width [mm]
       15– terminals thickness [mm]
          450– full length of connector [mm]
 It is possible to manufacture connectors with two different terminals
 sizes and/or thicknesses.

technical parameters

UNCOATED Part-No
TINNED Part-No
Cross sec. mm2
Dim. W mm
Dim. L1 mm
Dim. t mm
Dim. l mm
Current load ampere DC
Current load ampere AC
SF-12055
KF-12055
4500
120
120
55
acc. to customer’s wishes
5400
5200
SF-12040
KF-12040
3000
120
120
40
3900
3800
SF-12030
KF-12030
3000
120
120
40
4800
4500
SF-12025
KF-12025
2000
120
120
22
3400
3200
SF-12020
KF-12020
1200
120
120
20
2900
2750
SF-12018
KF-12018
800
120
120
18
2650
2500
SF-12015
KF-12015
800
120
120
14
2150
2000
SF-12010
KF-12010
600
120
120
10
1900
1750
SF-10025
KF-10025
1500
100
100
15
2100
2000
SF-10012
KF-10012
800
100
100
12
1820
1720
SF-10010
KF-10010
500
100
100
10
1600
1500
SF-10007
KF-10007
400
100
100
7
1400
1300
SF-10005
KF-10005
300
100
100
5
1150
1060
SF-08020
KF-08020
1000
80
80
20
2100
1950
SF-08018
KF-08020
1000
80
80
18
1900
1800
SF-08015
KF-08015
670
80
80
12
1500
1400
SF-08012
KF-08012
500
60
60
12
1500
1400
SF-08008
KF-08008
350
80
80
8
1200
1100
SF-08007
KF-08007
200
80
80
7
950
860
SF-06015
KF-06015
550
60
60
15
acc. to customer’s wishes
1400
1350
SF-06012
KF-06012
500
60
60
12
1350
1300
SF-06010
KF-06010
350
60
60
10
1150
1100
SF-06007
KF-06007
200
60
60
7
900
850
SF-06005
KF-06005
150
60
60
5
700
850
SF-05015
KF-05015
550
50
50
15
1350
1200
SF-05013
KF-05013
400
50
50
13
1050
100
SF-05010
KF-05010
250
50
50
10
900
850
SF-05007
KF-05007
200
50
50
7
800
780
SF-05005
KF-05005
150
50
50
5
650
630
SF-04015
KF-04015
300
40
40
15
acc.to customer’s wishes
900
850
SF-04012
KF-04012
250
40
40
10
680
700
SF-04010
KF-04010
200
40
40
10
SF-800
780
SF-04007
KF-04007
150
40
40
7
600
590
SF-04005
KF-04005
100
40
40
5
500
480
SF-03014
KF-03014
200
30
30
14
650
590
SF-03010
KF-03010
150
30
30
10
550
540
SF-03005
KF-03005
75
30
30
5
400
390
SF-03004
KF-03004
50
30
30
4
300
290
SF-02509
KF-02509
125
25
25
9
500
470
SF-02507
KF-02507
100
25
25
7
450
420
SF-02505
KF-02505
75
25
25
7
450
420
SF-02504
KF-02504
50
25
25
4
300
280
