SST / SKT

SILICONE INSULATED FLAT BRAIDED SHUNTS WITH PRESSED CONTACT AREAS

Application

The best alternative to cable; no cutting, no crimping, flexible, pre-punched, ready to use, quick and easy to install.

construction

These connectors are manufactured from highly flexible tapes, which are braided from annealed Cu-ETP1 wires, and solderless contact areas pressed from seamless Cu-ETP tubes. the braided tapes and tubes are of the same analysis and conductivity.

material

Material: 0,20 mm annealed Cu-ETP wires, uncoated or tinned,Silicone (UL 758 tested)

Contact Areas: Solderless pressed seamless Cu-ETP tube.

Operating Voltage: 1000V AC – 1500V DC

Heat Aging: 250°C 10 days
Minimum Temperature – Cold Bent: -50°C

Dielectric Strength: >21kv/mm

Reaction to Fire: CSE Class 1
Smoke Class Determination: F1

delivery method

Delivery method: ready-to-use connectors.

Product Card

We provide cataloged products that you can view and select from our brochures.

Contact

Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695

Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708

+48 798 068 000

+48 798 067 000

kontakt@plecionki-miedziane.pl

ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów

Technical parameters

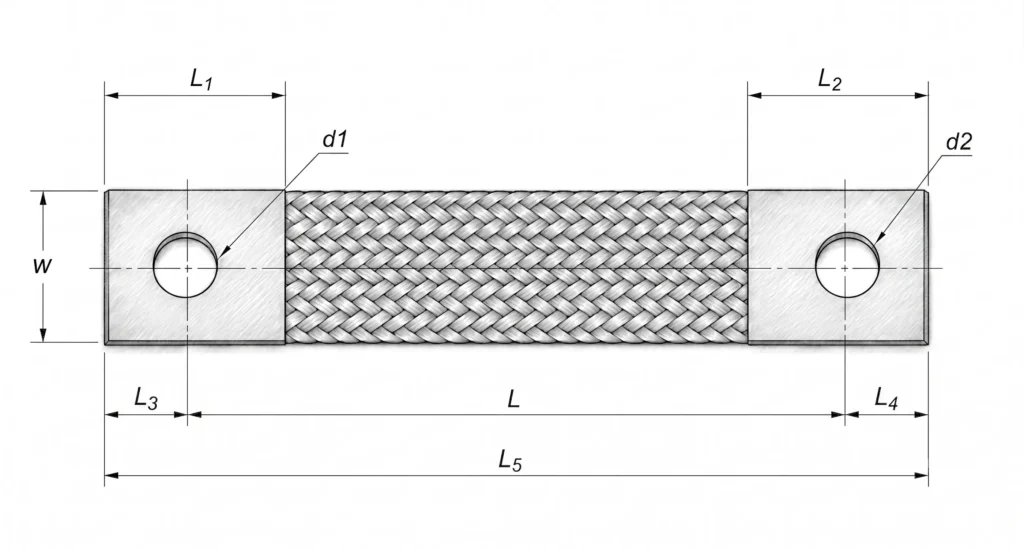

UNCOATED Part-No	TINNED Part-No	Cross sec. mm2	W mm	L1 mm	t mm	L mm	AC Amps
SST-02503	SKT-02503	25	20	20	3	acc. to customer’s wishes	160
SST-03503	SKT-03503	35	25	25	3		200
SST-05004	SKT-05004	50	30	30	4		250
SST-07005	SKT-07005	70	30	30	5		300

SST-09506	SKT-09506	95	35	35	6		350
SST-12007	SKT-12007	120	35	35	7		400
SST-15008	SKT-15008	150	35	35	8		450
SST-18509	SKT-18508	185	40	40	8		500
SST-24009	SKT-24010	240	40	40	10		630
