Round braided and stranded copper cables

Round copper braided and stranded cables available in our product range are characterized by high flexibility and mechanical strength. As a result, the braids do not suffer damage during operation, even when subjected to bending or twisting. Round copper braids and strands have a wide variety of applications and are used as components in machinery, equipment, and all types of electrical installations. In practice, round copper braided and stranded cables are used far more frequently in electrical systems than aluminium braids, primarily due to their significantly better electrical conductivity. Our product range includes various constructions, allowing the selection of a copper braid suitable for the specific application. Copper braids are used to manufacture grounding connectors, also known as grounding straps, which ensure the safe and proper operation of electrical equipment.

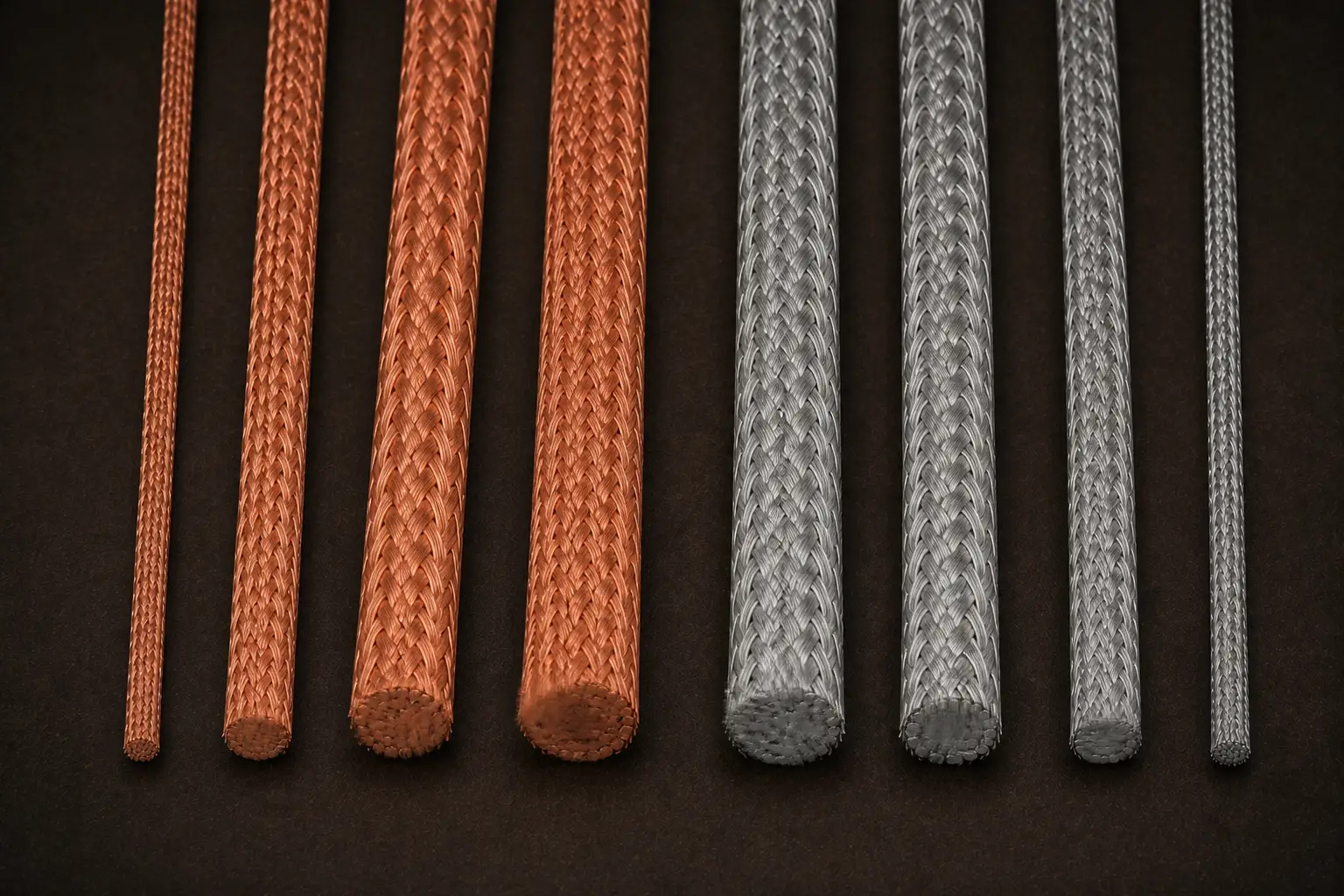

The available assortment includes, among others, standard stranded copper cables (SBO/KBO), high‑flexibility stranded copper cables (SDYO/KDYO), and round copper braided cables (STYO/KTYO). Standard round copper stranded cables, manufactured from wire with a diameter of 0.2–0.85 mm, are used in applications where mechanical strength has a higher priority than flexibility. Conversely, in applications requiring high flexibility, high‑flexibility round copper stranded cables (SDYO/KDYO) are used; these are made from thinner wire with diameters of 0.07–0.1 mm. Round stranded copper cabless can be used in applications requiring free movement of the connected points. Round copper braided cables (STYO/KTYO), on the other hand, are ideal for applications requiring length compensation or vibration damping. Round braidedc cables offer both flexibility and high mechanical durability. For the same cross‑sectional area, a braided cables has a larger outer diameter than a stranded cable. All products in our range are manufactured from annealed Cu‑ETP wire in accordance with EN 13602. Every copper strand and braid is produced in compliance with the highest quality standards. Each type and construction of copper strand or braid can be supplied either bare (plain copper) or tinned.
