FLEXIBLE ALUMINUM CONNECTORS
application
These connectors are used in many devices and applications requiring flexible high-current connections.
construction
These connectors are manufactured from flexible tapes , which are braided from aluminum wires, and solderless contact areas pressed with seamless aluminum tubes.
You can also ask for L or U shapes except than straight shape. It is possible to manufacture contact areas and the laps according to customers’ special designs.
You are totally free to choose the drilling type and hole diameter as you wish.
If insulation is needed, there are choices as PVC, silicone or heat shrinking tubes as well as extruded PVC.
material
Material
0,10 – 0,20 mm aluminum wires.
Non-insulated or insulated ( PVC , shrinking or silicone tubes )
Contact Areas
seamless aluminum tubes,
solderless pressed
delivery method
Delivery method : ready-to-use connectors
Product card
We provide cataloged products that you can view and select from our brochures.
Contact
ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów
Example of marking
| A | F | – | 1 | 2 | 0 | 2 | 0 | – | 4 | 5 | 0 | ||||||||
| A | – aluminum connector | ||||||||||||||||||
| F | – base marking | ||||||||||||||||||
| 1 | 2 | 0 | – terminal width 120mm | ||||||||||||||||
| 2 | 0 | – terminal thickness 20mm | |||||||||||||||||
| 4 | 5 | 0 | – full length of connector | ||||||||||||||||
| * | It is possibe to manufacture connectors with two different terminals | ||||||||||||||||||

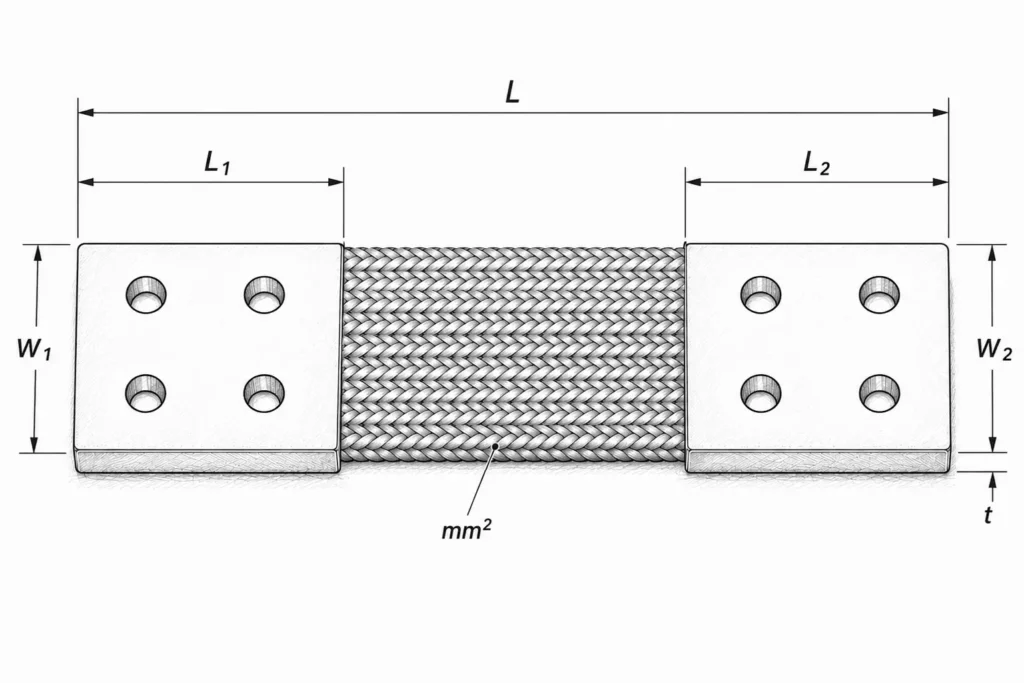

technical parameters
Part. No | Cross sec. mm2 | Dim. W mm | Dim. L1 mm | Dim. t mm | Dim. L mm |
|---|---|---|---|---|---|
AF-12055 | 4500 | 120 | 120 | 55 | acc. to customer’s wishes |
AF-12040 | 3000 | 120 | 120 | 40 | |
AF-12030 | 2000 | 120 | 120 | 30 | |
AF-12025 | 2000 | 120 | 120 | 22 | |
AF-12020 | 1200 | 120 | 120 | 20 | |
AF-12018 | 1000 | 120 | 120 | 18 | |
AF-12015 | 800 | 120 | 120 | 14 | |
AF-12010 | 600 | 120 | 120 | 10 | |
AF-10025 | 1500 | 100 | 100 | 25 | |
AF-10020 | 1000 | 100 | 100 | 20 | |
AF-10015 | 800 | 100 | 100 | 15 | |
AF-10012 | 600 | 100 | 100 | 12 | |
AF-10010 | 500 | 100 | 100 | 10 | |
AF-10007 | 400 | 100 | 100 | 7 | |
AF-10005 | 300 | 100 | 100 | 5 | |
AF-08020 | 1000 | 80 | 80 | 20 | |
AF-08018 | 840 | 80 | 80 | 18 | |
AF-08015 | 670 | 80 | 80 | 15 | |
AF-08012 | 500 | 80 | 80 | 12 | |
AF-08010 | 400 | 80 | 80 | 10 | |
AF-08008 | 350 | 80 | 80 | 8 | |
AF-08007 | 200 | 80 | 80 | 7 | |
AF-06015 | 550 | 60 | 60 | 15 | acc. to customer’s wishes |
AF-06012 | 500 | 60 | 60 | 12 | |
AF-06010 | 350 | 60 | 60 | 10 | |
AF-06007 | 200 | 60 | 60 | 7 | |
AF-06005 | 150 | 60 | 60 | 5 | |
AF-05015 | 550 | 50 | 50 | 15 | |
AF-05013 | 400 | 50 | 50 | 13 | |
AF-05010 | 250 | 50 | 50 | 10 | |
AF-05007 | 200 | 50 | 50 | 7 | |
AF-05005 | 150 | 50 | 50 | 5 | |
AF-04015 | 300 | 40 | 40 | 15 | acc.to customer’s wishes |
AF-04012 | 250 | 40 | 40 | 12 | |
AF-04010 | 200 | 40 | 40 | 10 | |
AF-04007 | 150 | 40 | 40 | 7 | |
AF-04005 | 100 | 40 | 40 | 5 | |
AF-03014 | 200 | 30 | 30 | 14 | |
AF-03010 | 150 | 30 | 30 | 10 | |
AF-03005 | 75 | 30 | 30 | 5 | |
AF-03004 | 50 | 30 | 30 | 4 | |
AF-02509 | 125 | 25 | 25 | 9 | |
AF-02507 | 100 | 25 | 25 | 7 | |
AF-02505 | 75 | 25 | 25 | 5 | |
AF-02504 | 50 | 25 | 25 | 4 |
