HSK
AIR COOLED ROUND STRANDED CABLES FOR HIGH CURRENT
application
These air cooled stranded connectors are applicable in many high current industrial machines and devices.
construction
These connectors are manufactured from highly flexible round stranded copper cables, constructed from annealed 0,10mm diameter Cu-ETP1 wires , and solderless pressed contact areas from seamless Cu-ETP tubes.
Besides bare wires and uncoated Cu-ETP tubes , we can also manufacturing them according to your drawings or samples. The shape of the contact area and the type of drilling are totally up to you. We can also deliver them insulated with PVC , heat-shrinkable or silicon tubes.
material
Material:
0,10 mm annealed Cu ETP wires , uncoated or tinned
Non-insulated or insulated ( PVC , shrinking or silicone tubes )
Contact Areas: seamless Cu ETP tubes , uncoated or tinned,solderless pressed
Non-insulated or insulated ( PVC , shrinking or silicone tubes )
Contact Areas: seamless Cu ETP tubes , uncoated or tinned,solderless pressed
delivery method
Delivery method: ready-to-use connectors.
Product card
We provide cataloged products that you can view and select from our brochures.
Contact
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 695
Warning: Undefined array key "icon" in /home/klient.dhosting.pl/plecionkimi/plecionki-miedziane.pl/public_html/wp-content/plugins/elementor/includes/widgets/icon-box.php on line 708
ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów
Technical parameters

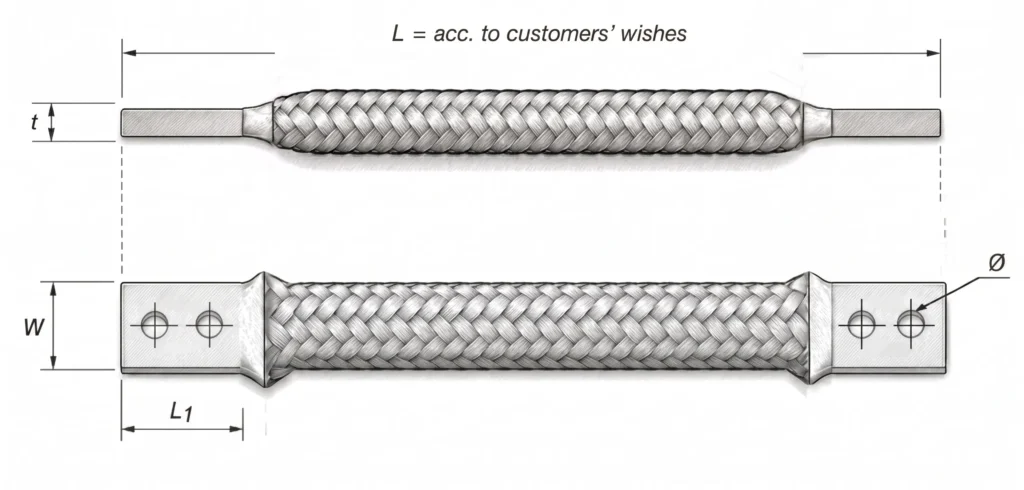

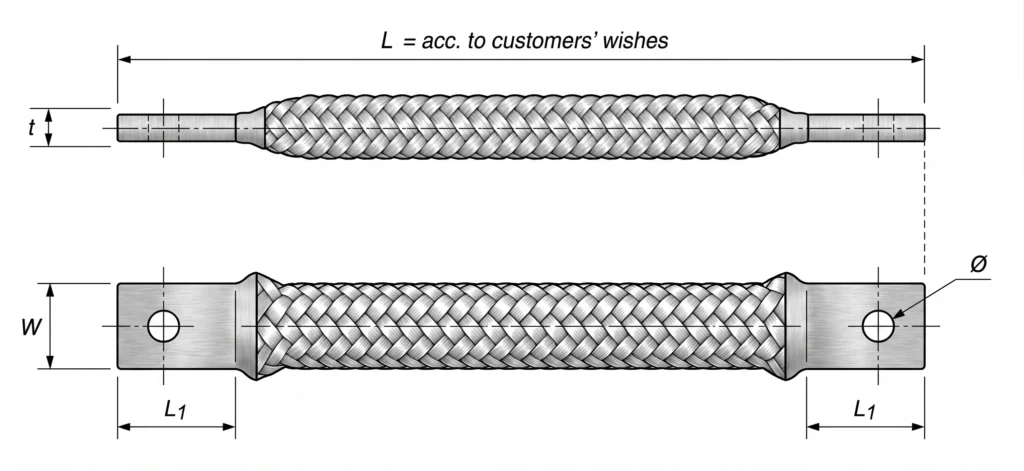

UNCOATED Part-No | TINNED Part-No | Current load Amperre | Type 2 L1 mm | Type 1 L1mm | W mm | t mm |
|---|---|---|---|---|---|---|
HSK – 0070 | 70 | 300A | 30 | 15 | 15 | 8,5 |
HSK – 0095 | 95 | 360A | 40 | 20 | 20 | 8,3 |
HSK – 0120 | 120 | 420A | 40 | 20 | 20 | 10 |
HSK – 0150 | 150 | 480A | 50 | 25 | 25 | 11,5 |
HSK – 0185 | 185 | 570A | 50 | 25 | 25 | 13,5 |
HSK – 0240 | 240 | 670A | 60 | 32 | 32 | 12,8 |
HSK – 0300 | 300 | 780A | 80 | 40 | 40 | 13,3 |
HSK – 0400 | 400 | 950A | 80 | 40 | 40 | 15,5 |
HSK – 0500 | 500 | 1100A | 80 | 40 | 40 | 23,5 |
HSK – 0600 | 600 | 1250A | 80 | 40 | 55 | 18,8 |
HSK – 0700 | 700 | 1375A | 80 | 40 | 55 | 20,2 |
HSK – 0750 | 750 | 1450A | 80 | 40 | 55 | 21,8 |
HSK – 0850 | 850 | 1550A | 80 | 40 | 55 | 22,3 |
HSK – 1000 | 1000 | 1800A | 80 | 40 | 55 | 27 |
