STAINLESS STEEL GROuNDING CONNECTORS
stainless steel grounding straps - application
Stainless steel grounding tapes are a great alternative to wires, no cutting, no crimping, flexible, pre-punched contact areas, ready to use, fast and easy to install.
Stainless steel grounding straps - Construction
The stainless steel grounding straps are manufactured from a highly flexible strip woven from stainless steel wire. The contact areas, on the other hand, are made of seamless stainless tube. Both the braid and the contact elements have exactly the same chemical composition and conductivity.
Material
Material: 316L or 304 stainless wire with a diameter of 0.16-0.40mm.
Without insulation or with insulation (heat shrinkable, PVC, silicone insulation, etc.).
Contact surfaces: pressed from 316L stainless tube
form of delivery
Delivery form: ready-to-use connectors
Product Card
We provide cataloged products that can be viewed and selected from our brochures.
Contact
ul. Jana Matejki 6,
66-100 Brzezie k. Sulechów
DESIGNATION
| I | – only for the tape with insulation | ||||||||||||||||||||||
| P | T | – tape with stainless steel wire | |||||||||||||||||||||
| Example od product designation | |||||||||||||||||||||||
| P | T | – | 0 | 1 | 6 | – | 2 | 0 | 0 | – | 0 | 7 | 0 | 7 | |||||||||
| P | T | – braided tape with stainless steel wire | |||||||||||||||||||||
| 0 | 1 | 6 | – cross section 16mm2 | ||||||||||||||||||||
| 2 | 0 | 0 | – hole to hole distance 200mm | ||||||||||||||||||||
| 0 | 7 | – hole 1 diameter 7mm | |||||||||||||||||||||
| 0 | 7 | – hole 2 diameter 7mm | |||||||||||||||||||||
specifications

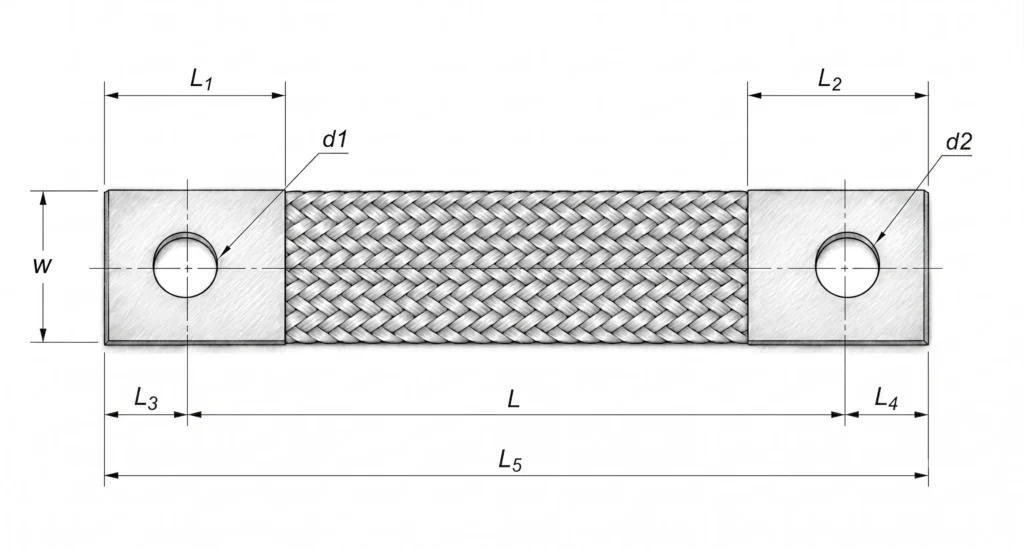

Stainless steel | Cross section [mm2] | Wym.W [mm] | Wym.L1/L2 [mm] | Wym.L [mm] | Wym.d [mm] |
|---|---|---|---|---|---|
PT-016 | 16 | 16 | 16 | wg zamówienia klienta | wg zamówienia klienta |
PT-025 | 25 | 20 | 20 | ||
PT-035 | 35 | 30 | 30 | ||
PT-050 | 50 | 30 | 30 | ||
PT-070 | 70 | 30 | 30 | ||
PT-095 | 95 | 30 | 30 | ||
PT-120 | 120 | 35 | 35 | ||
PT-150 | 150 | 40 | 40 |
